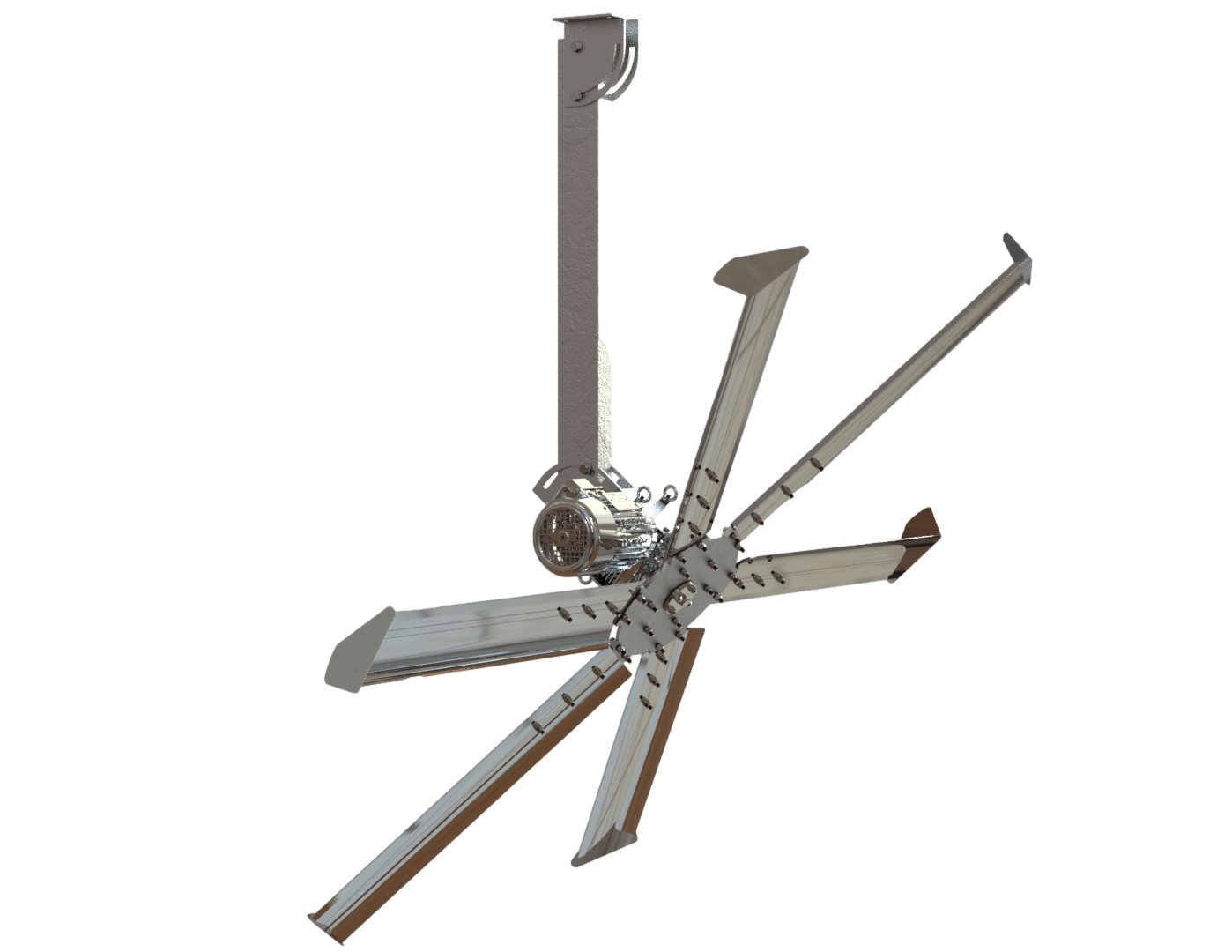

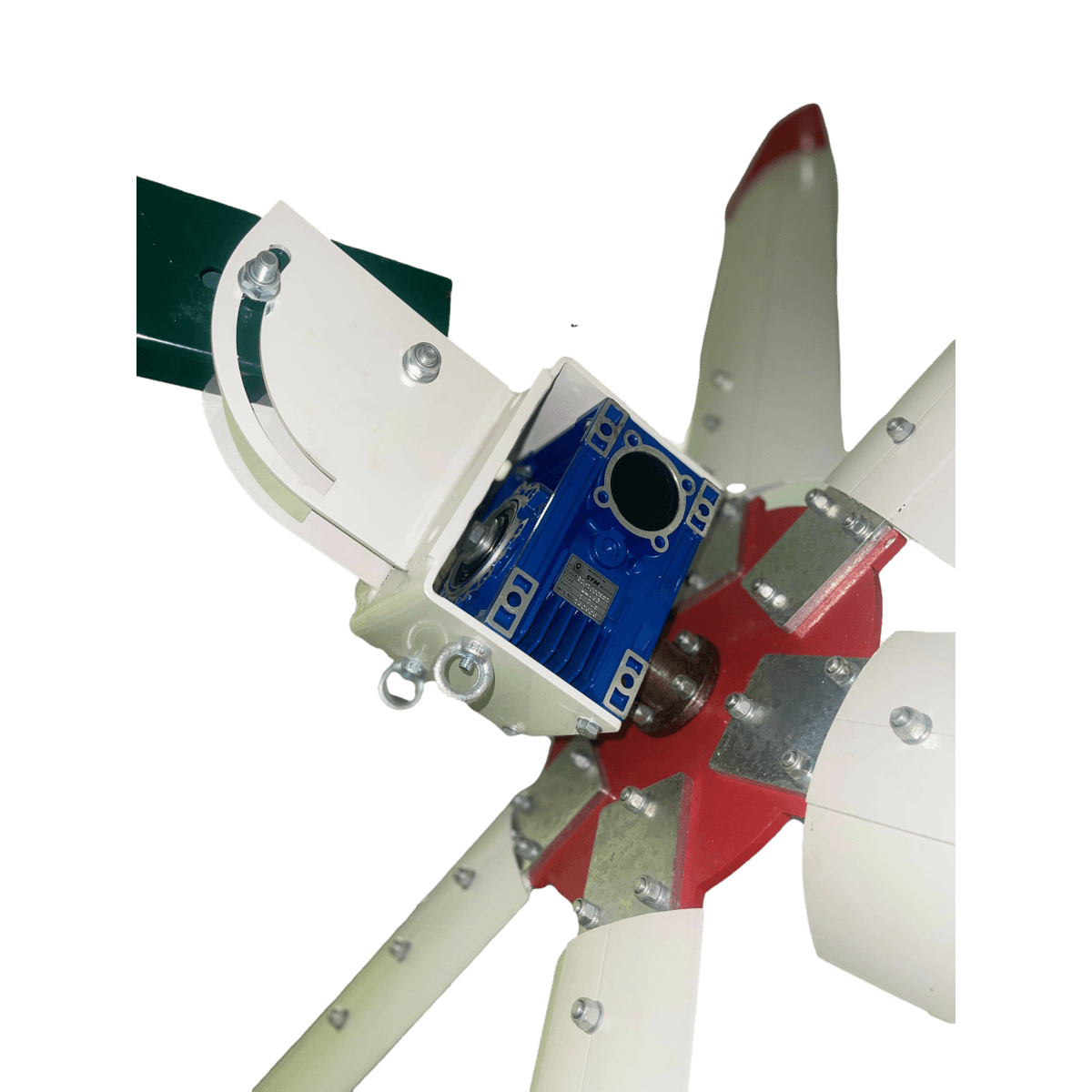

EASY KLIMA
The Agricow Easy-Klima fan creates a high-speed directional flow by channelling the air directly over the animals.
It can be coupled with sprinklers.
It has a variable inclination (0 to 90 degrees) and is ideal for low-ceilinged cowsheds or other areas of the cowshed.
It is ideal for reducing ammonia in the air.

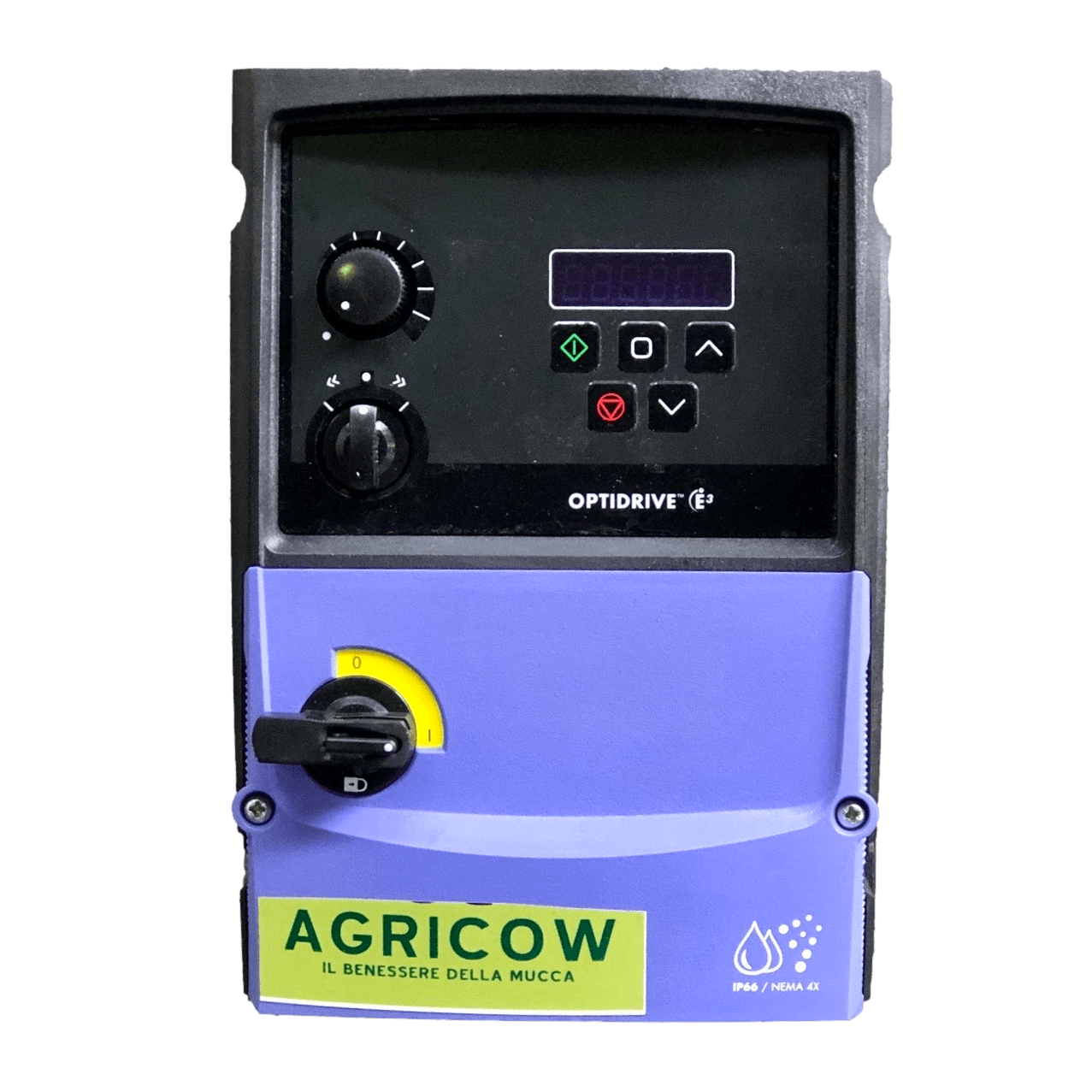

INVERTER
for speed regulation and ventilation with water
ALUMINUM BLADES
designed for greater air flow with lower energy consumption

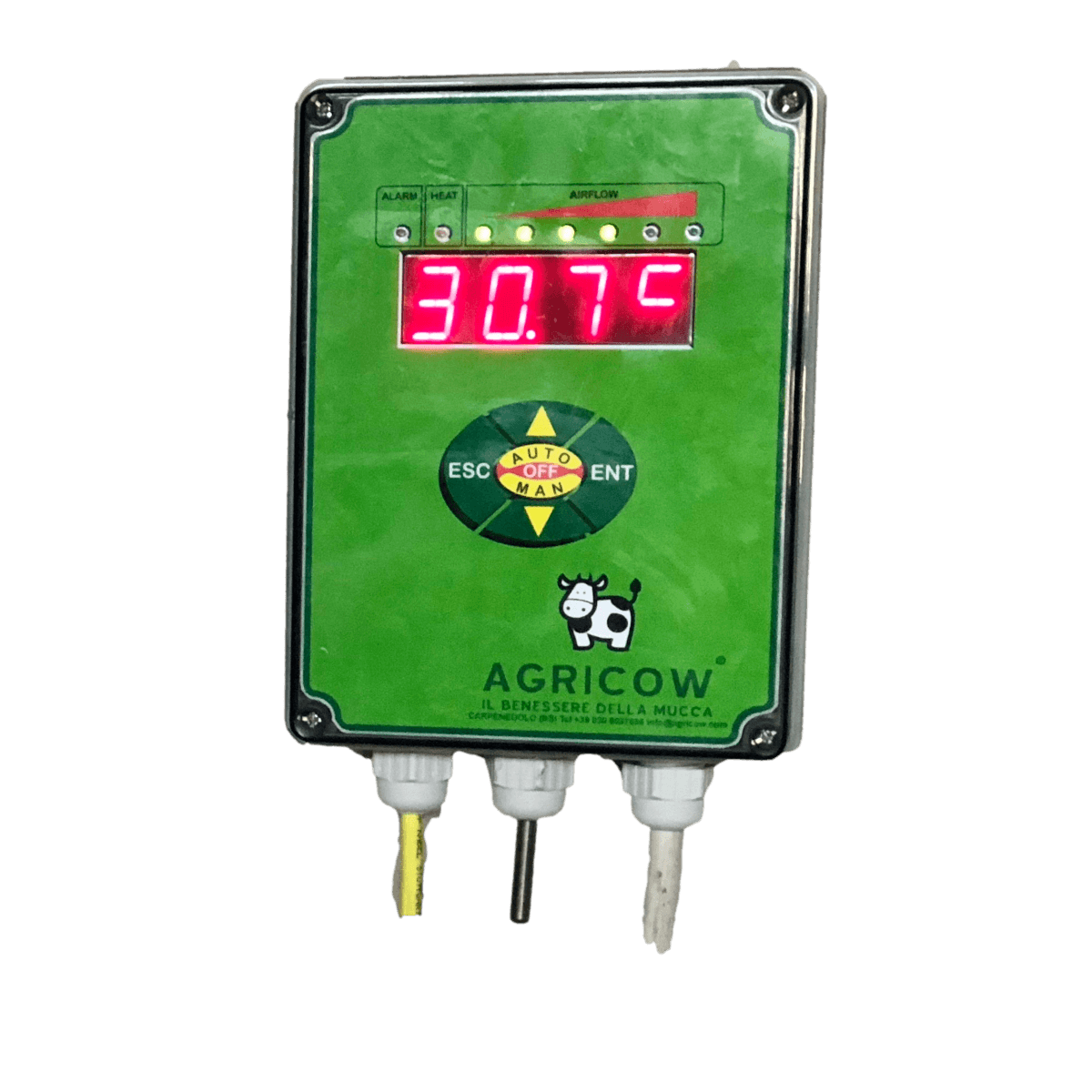

TEMPERATURE CONTROLLER
to automate the system according to the inside temperature.

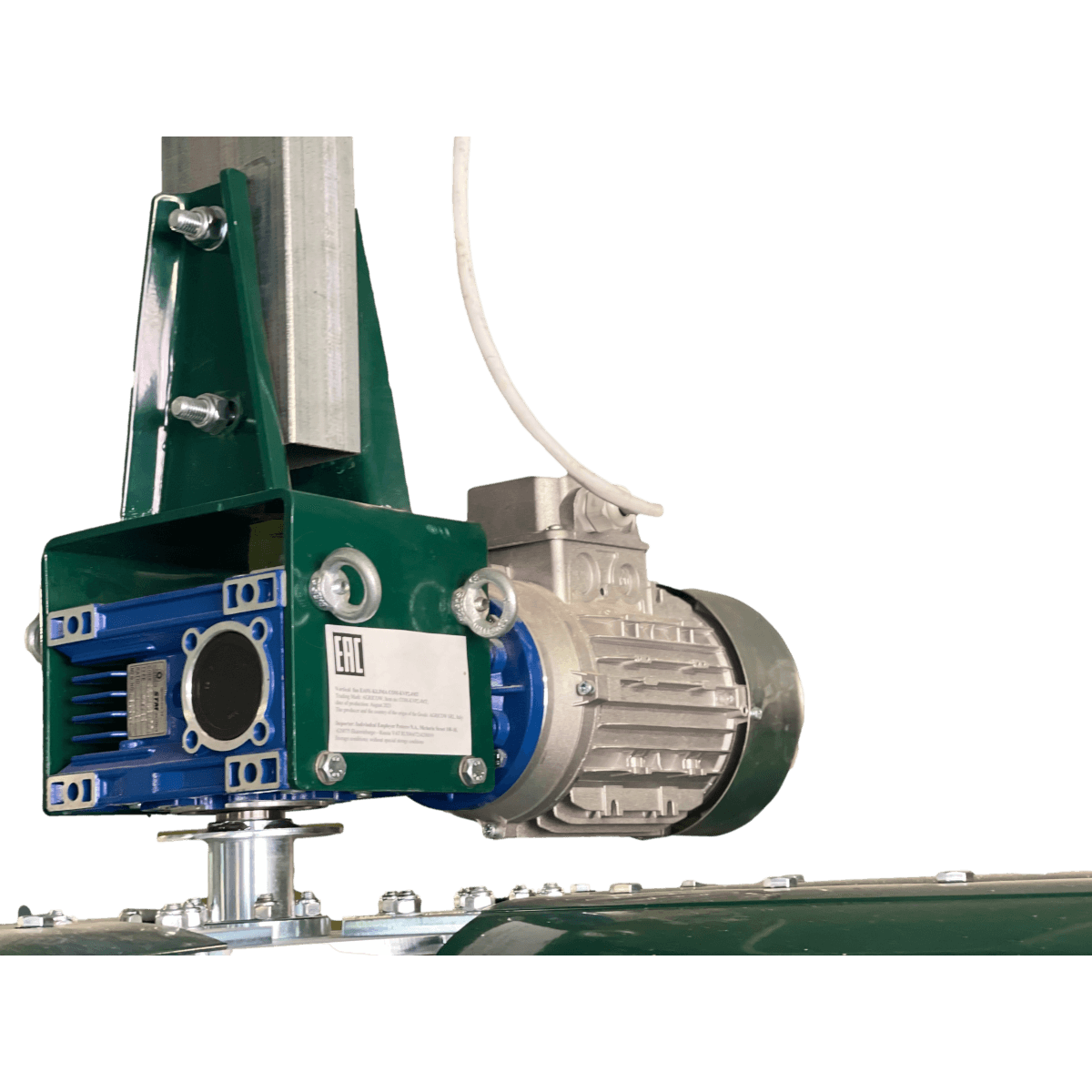

MOTOR
low energy consumption
FIXED ON CEILING
adjustable connections according to the type of surface to be attached to.
TECHNICAL INFO
N. Blades
5
Diameter Ø
2,4 mt
Weight (Kg)
55 kg
Motor type/motor RPM
3-phase asynchronous 4-pole/1400
Engine data
230-400 VAC. 50/60 hz–rpm 1400-A 6/3.45
Power (Hp/Kw)
2 hp -1,8 Kw
Ratio reducer
1/7,5
RPM
186
Airflow (m³ / h)
122.000
Frequency (Hz)
50 hz
